24-Seven ESD LockSafe Tiles

From $11.60

24/Seven® ESD LockSafe® interlocking tiles by Wearwell® eliminates static, while providing an ergonomic worksurface for your team to perform. The 770 ESD rubber mats can cover large work areas and placed directly on top of a conductive coating or floor surface which eliminates the need for grounding cords. The 24/Seven LockSafe®, “positive interlock” design, allows the rubber ESD tiles to lock-in, while remaining easy to rip for reconfiguration. The LockSafe® connection also allows the assembled mats to be rolled up for storage.

View Price Chart

Description

Wearwell Logo
24-Seven® ESD LockSafe® Tiles are designed for preventing static electricity build up which can produce damaging sparks that can ruin and destroy expensive equipment. 24/Seven LockSafe ESD eliminates static, while providing an ergonomic work surface for your team to perform. Made to cover large areas quickly, the 770 ESD can be placed directly atop a conductive coating or floor, eliminating the need for messy grounding cords. For more conventional installations, each tile comes with the grounding snap already installed for use with a grounding cord. The “positive interlock” technology allows the rubber tiles to lock in, while remaining easy enough to ‘unzip’ for reconfiguration. Around electronics keeping a work area clean is very important. The Locksafe connection system allows the mat to be rolled up to make keeping a cleaning easier.

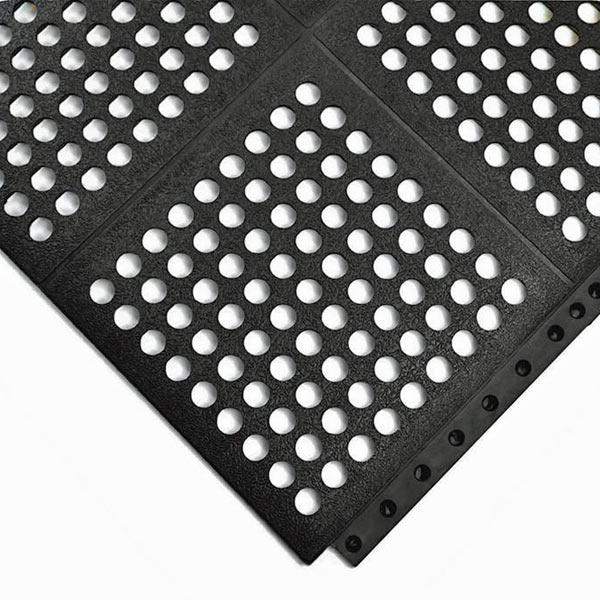

24/Seven LockSafe ESD is available in a sold surface tile and an open grid tile which eliminates static while providing a drainage ergonomic work surface for your team to perform.
  • Tiles interlock securely and come apart on demand for reconfiguration
  • EOS/ESD S7.1: 1×10^6-1×10^9 (meets ANSI/ESD 20.20 requirements)

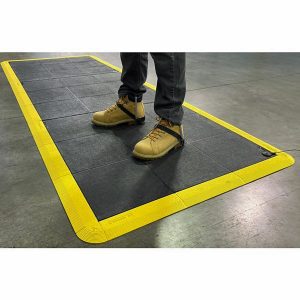

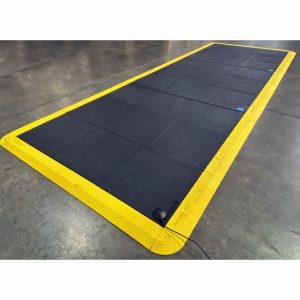

  • Cover large areas with ESD dissipative ergonomic flooring in minutes
  • Grease resistant rubber best in lightly wet and slippery dry areas
  • Grounding snap on each mat
  • Safety ramps do not possess ESD properties
  • 3’x 3’(91x91cm) rubber tiles

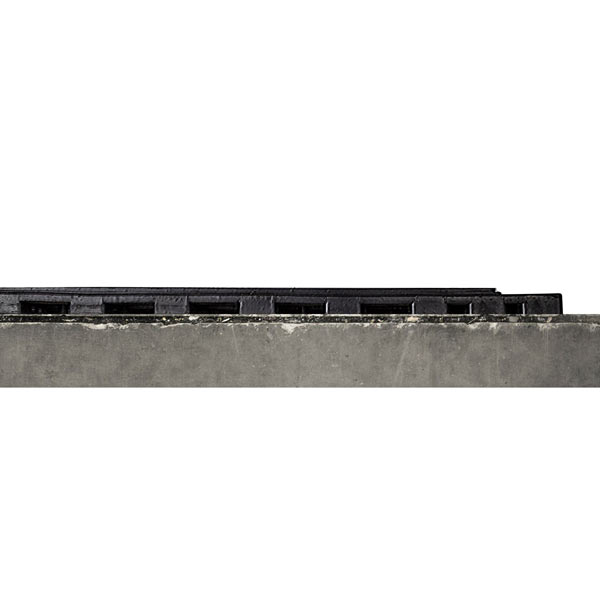

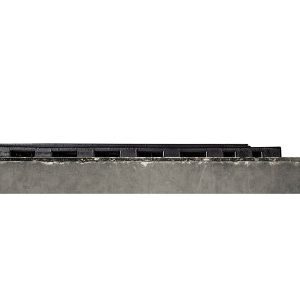

  • Overall thickness 5/8″ (15.9 mm)

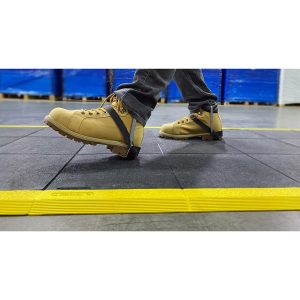

NOTE: Unless used over a conductive floor, mats must be grounded with a ground cord (793-Cord) and users must wear a heel grounder (793-Heel)

793 CDUse with our 15′ ESD Ground Cord

Additional information

Weight N/A
Select

24/7 LockSafe ESD Solid GR, 24/7 LockSafe ESD Open GR, 24/7 LockSafe GR Ramps – Female (Black), 24/7 LockSafe GR Ramps – Female (Yellow), 24/7 LockSafe GR Ramps – Male (Black), 24/7 LockSafe GR Ramps – Male (Yellow), 24/7 LockSafe GR Ramps – Outside Corner (Black), 24/7 LockSafe GR Ramps – Outside Corner (Yellow)

Pricing

Stock Sizes (3′ x 3′ mat) Price  Weight
24/Seven ESD LockSafe Solid (Grease Resistant (GR) $107.50 25 lbs.
24/Seven ESD LockSafe Open (Grease Resistant (GR) $119.75 25 lbs.
RAMPS
24/Seven LockSafe GR Ramps – Female 3” x 36” Black $11.60 2 lbs.
24/Seven LockSafe GR Ramps – Female 3” x 36” Yellow $17.70 2 lbs.
24/Seven LockSafe GR Ramps – Male 3” x 36” Black $11.60 2 lbs.
24/Seven LockSafe GR Ramps – Male 3” x 36” Yellow $17.70 2 lbs.
24/Seven LockSafe GR Ramps Outside Corner 4” x 3” (Case of 4) Black $19.30 2 lbs.
24/Seven LockSafe GR Ramps Outside Corner 4” x 3” (Case of 4) Yellow $22.05 2 lbs.

Specs

Product Specs

Uses: Dry areas
Compounds: Grease Resistant – 100% Natural rubber
Durometer: 60 per ASTM D2240
ESD Rating: EOS/ESD S7.1: 1×10^6-1×10^9 (meets ANSI/ESD 20.20 requirements)
Coefficient of Friction: ASTM F1677 / Dry: COF = .90 / Wet COF = 020
Temperature Range: 10 to 140 F
Tabor Abrasion: 1% loss per Fed. Std. 191
Flammability: “A” Rating per MVSS 302
Recycled: >50%
Thickness: 5/8″
Colors: Black
Warranty: 1 year, conditional

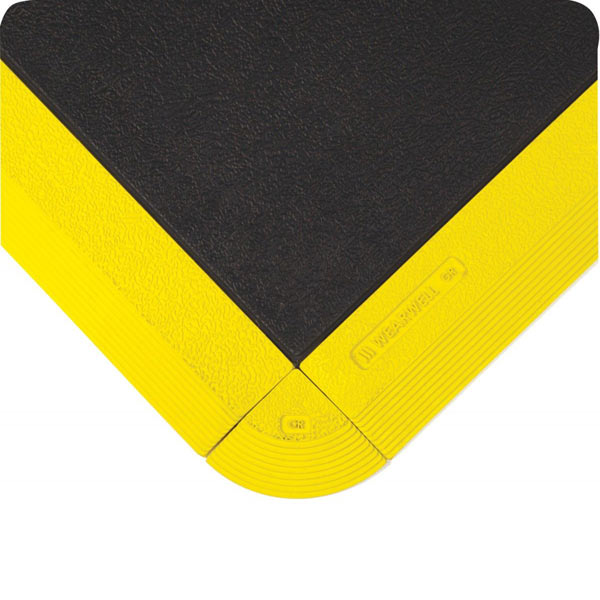

Edging: Optional 3″ x 36″ safety bevels
Edging Colors: Black, Yellow

Literature

Videos

VIDEOS

24/7 LockSafe Problem Solver

24/7 LockSafe ESD Rubber Flooring How to ground.

24/7 LockSafe VS Traditional Modular Flooring
