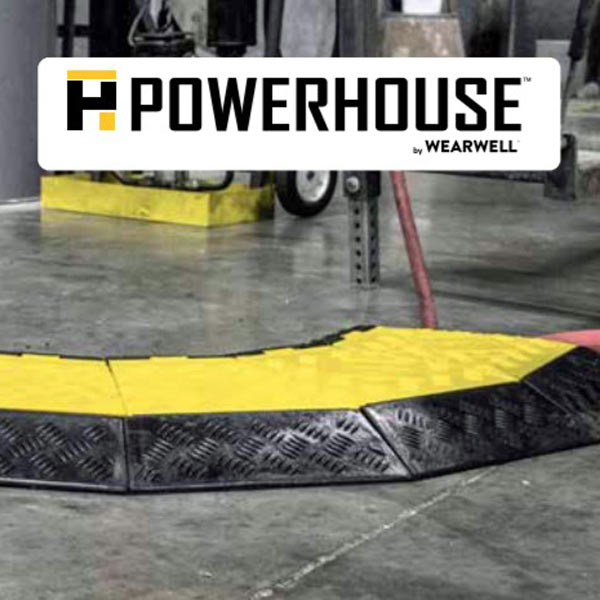

Powerhouse Cable System

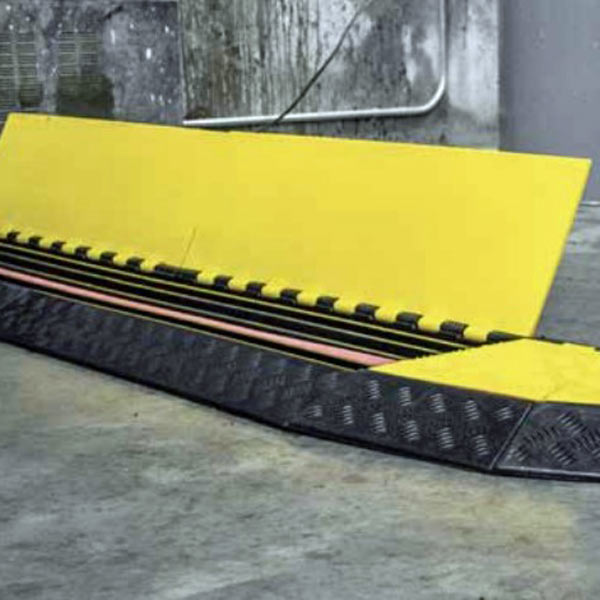

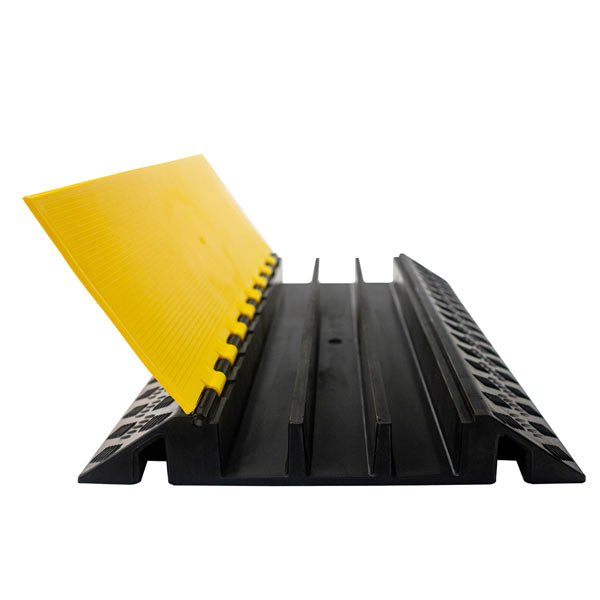

Powerhouse Cable System Open

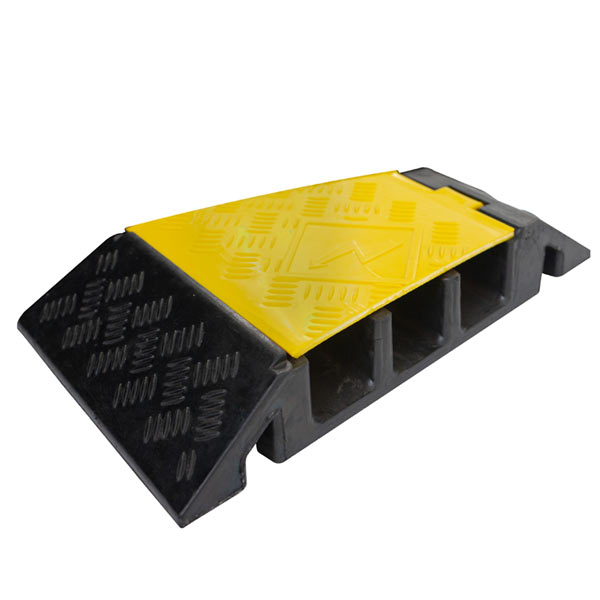

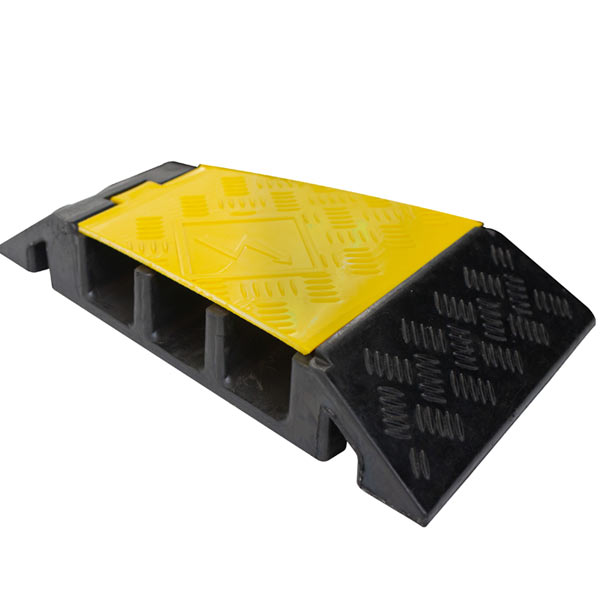

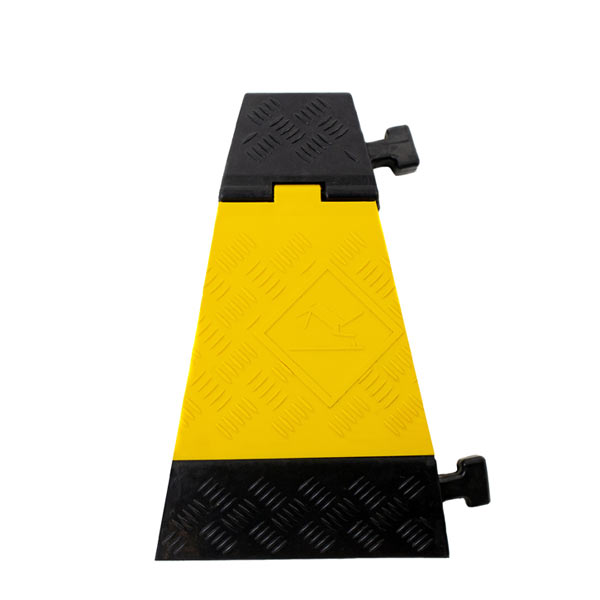

Powerhouse Cable Protection 3 Channel Left Corner

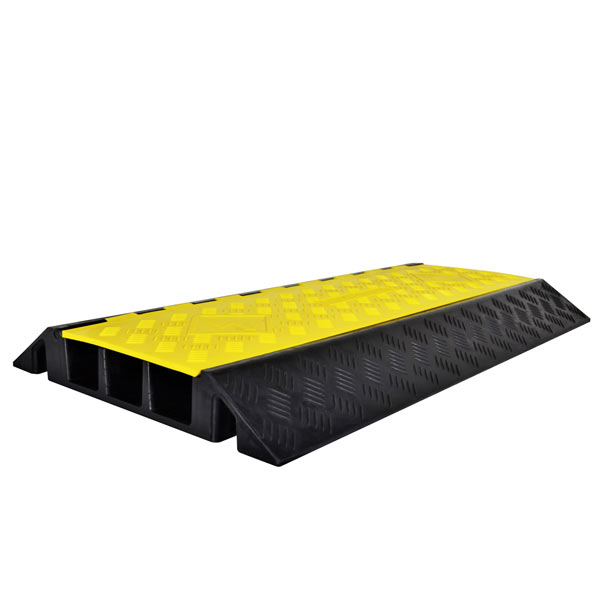

Powerhouse Cable Protection 3 Channel Straight Heavy Duty
Powerhouse Cable Protection 3 Channel Straight Heavy Duty

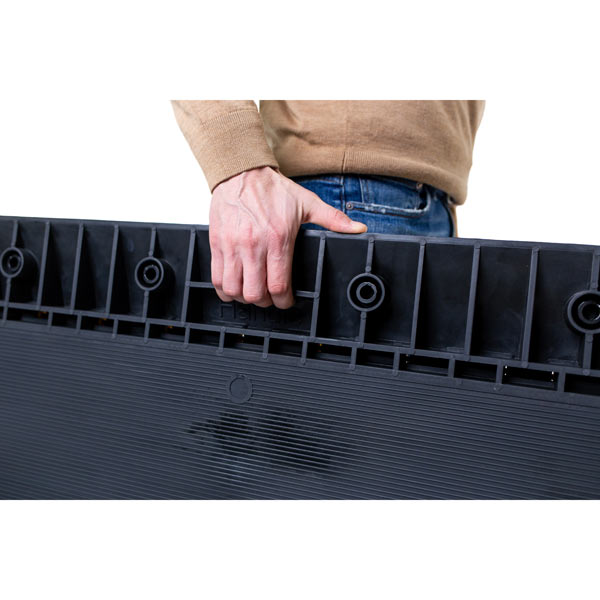

Powerhouse Cable Protection Built in handle

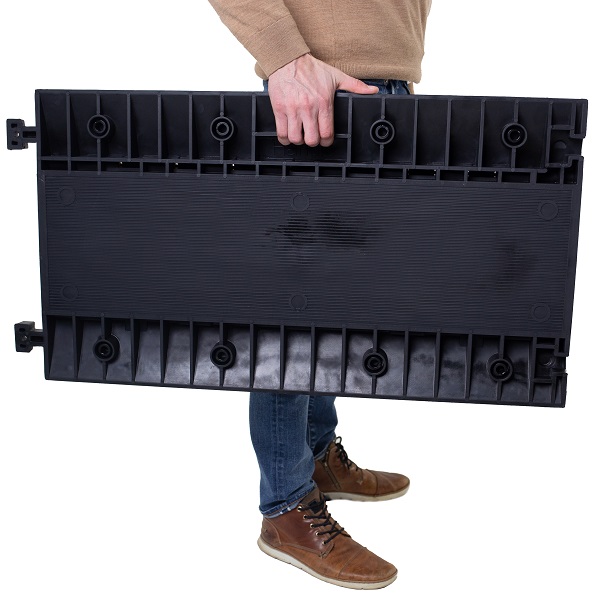

Powerhouse Cable Protection Carry handle

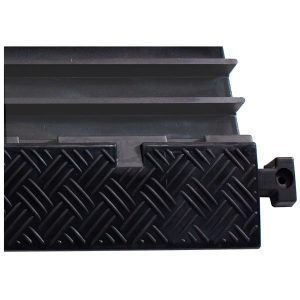

Powerhouse Cable Protection 5 Channel Straight Slot

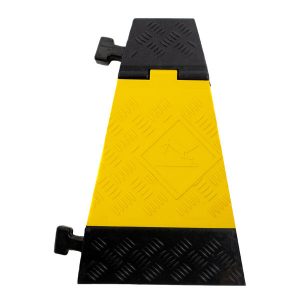

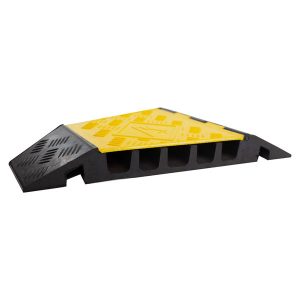

Powerhouse Cable Protection 5 Channel Left Corner
Powerhouse Cable Protection 5 Channel Heavy Duty Profile

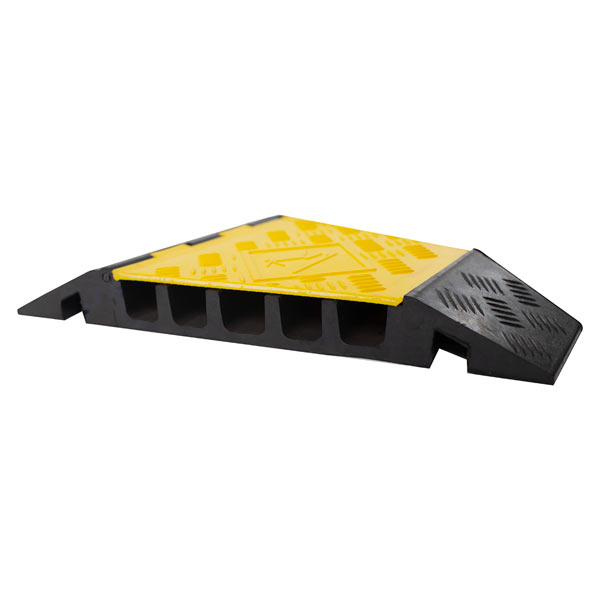

Powerhouse Cable Protection 5 Channel Heavy Duty left corner
Powerhouse Cable Protection 5 Channel General Purpose

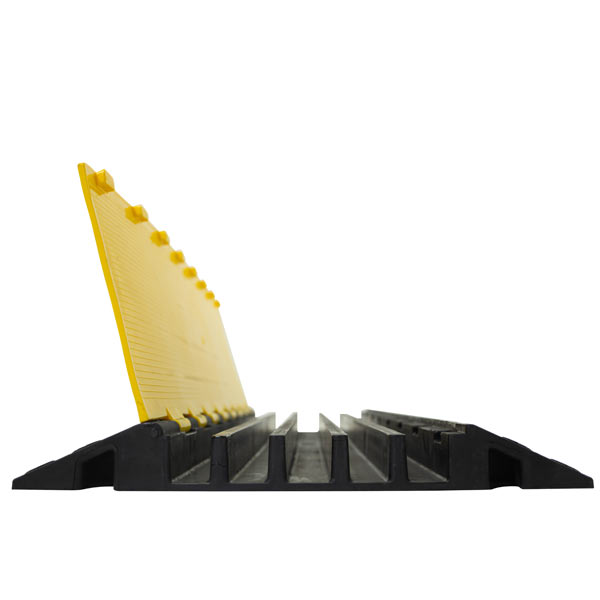

Powerhouse Cable Protection 5 Channel General Purpose Open

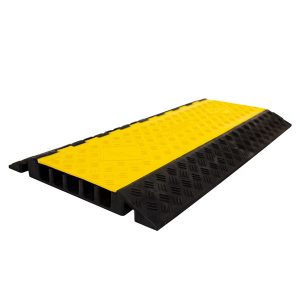

Powerhouse Cable Protection 5 Channel General Purpose Straight
Powerhouse Cable Protection 3 Channel General Purpose Straight
Powerhouse Cable Protection 3 Channel General Purpose Straight

POWERHOUSE Cable Protection

From $74.25

The POWERHOUSE Cable Protection system keeps hoses and cables safely secured under the secure Lid-lock feature with hidden hinges protecting pedestrian traffic from possible trip hazards and also potential damage to cables. The POWERHOUSE cable protection system is designed to turn. The 22.5° left or right turning pieces allow you to safely route your cables around corners without forming unsafe angles and keeping cables from kinking. Brightly colored, high traction yellow lids offer high visibility for safety and quick recognition. The cable protectors can withstand a capacity load up to 20,000 lbs of pressure per tire! The Powerhouse cable straight protector is available in three different load rating designs depending on the size of the cable diameter required. The straight protector and the left/right turns are available in 3 or 5 channels

View Price Chart

Clear

Description

The POWERHOUSE Cable Protection system is the first true cable protection product that includes all the necessary features to protect cables and hoses from damage and weather, but more importantly protecting pedestrian traffic from serious trip and fall accidents. What makes the Powerhouse cable protection system unique is the built in Lid-lock system. The easy open lid features a built-in access port to easily open the lid. Just slide a screwdriver or pry bar to pop open the lid with ease. Secondly, since hoses and cables don’t always run the same direction we have created 22.5° angle turns for both left and right to safely route you cables around corners without kinking. 4 turn pieces create a gradual 90° angle.

  • The PowerHouse Cable Protection system is completely customizable to create a custom path of any length and with an endless amount of turns.
  • 22.5° degree angle turn pieces allow you to take your cable protection in any direction you need to go.
  • Durable interlocking connections create a secure hold and prevent separation from pedestrian and wheeled traffic.
  • Bright yellow lids offer high visibility for safety and quick recognition.
  • Cable protectors can be used indoor or outdoor. Constructed from TPU and PE, they are highly resistant to corrosion from chemicals and oils, and guard against impact and abrasion.
  • Diamond plate surface provides excellent traction even when wet.
  • Supports a maximum of up to 20,000 lbs per tire depending on capacity load rating.
  • Three designs to accommodate different load capacity requirements and cable diameters.
  • Hidden hinges on Lid-lock allow for the lid to lie flat while protecting cables from damage.
  • Reinforced hinge support – internal hinge rod for additional durability and strength.
  • Built-in carry handle on the underside allows for ease of transport from one location to the next.
  • Available in 3 or 5 channel designs.
  • Holds up to 2.25 inch (5.7 cm) maximum cable diameter
  • Black with yellow lid diamond plate surface.
  • Covered by a 3 year indoor/1 year outdoor warranty
  • View Pricing Table for a complete list of dimensions, cable diameters and load capacities.

Additional information

WeightN/A
Part

HD 3-Channel Straight, HD 5-Channel Straight, MD 5-Channel Straight, GP 5-Channel Straight, Left Turn 3-Channel, Right Turn 3-Channel, Left Turn 5-Channel, Right Turn 5-Channel

POWERHOUSE CABLE PROTECTION SYSTEM

Heavy Duty
Part #StyleChannelsCable SizeSizePSL (per tire)Price
PWR.3CHAN.HD.BYLStraight32.25″ dia.19.75″ x 36″ x 3″14,000 lbs.$253.15
PWR.3CH.HD.LC.BYLLeft32.25″ dia.19.75″ x 12″ x 3″14,000 lbs.$87.75
PWR.3CH.HD.RC.BYLRight32.25″ dia.19.75″ x 12″ x 3″14,000 lbs.$87.75
PWR.5CHAN.HD.BYLStraight51.5″ dia.19.75″ x 36″ x 2.25″20,000 lbs.$219.40
PWR.5CH.HD.LC.BYLLeft51.5″ dia.19.75″ x 12″ x 2.25″20,000 lbs.$74.25
PWR.5CH.HD.RC.BYLRight51.5″ dia.19.75″ x 12″ x 2.25″20,000 lbs.$74.25
Medium Duty – 5 Channel
Lower profile than General Purpose for smaller cables. Lid-lock feature holds lids secure for wheeled and pedestrian traffic.
PWR.5CHAN.MD.BYLStraight51.25″ dia.19.63″ x 36″ x 2″10,000 lbs.$175.50
General Purpose – 5 Channel
Higher Profile than Medium Duty for larger cables. Lid-lock feature on straight style, hold lids secure for lighter wheeled and pedestrian traffic.
PWR.5CHAN.GP.BYLStraight51.5″ dia.19.63″ x 36″ x 2.25″10,000 lbs.$195.75
PWR.5CH.HD.LC.BYLLeft51.5″ dia.19.75″ x 12″ x 2.25″10,000 lbs.$74.25
PWR.5CH.HD.RC.BYLRight51.5″ dia.19.75″ x 12″ x 2.25″10,000 lbs.$74.25

Product Specifications:

FlammabilityFMVSS 302 SE Rating
Taber Abrasion< .5% weight loss after 1,000 cycles
Temperature Range40 to 150 degrees Fahrenheit
Coefficient of Friction
Compression DeflectionNA
Tear StrengthLid: 1730 psi Base: 1000 psi
ESD RatingNA
Dielectric StrengthNA

POWERHOUSE Cable Protection System

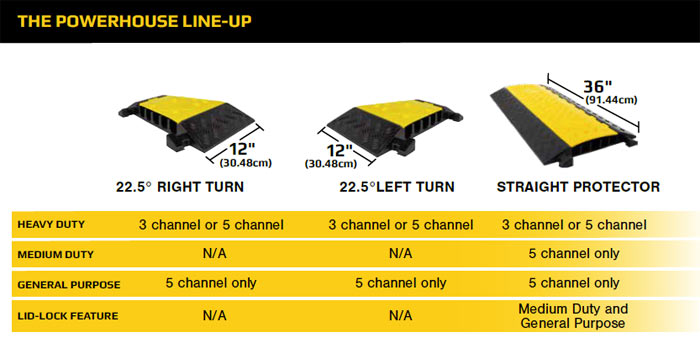

PowerHouse Lineup

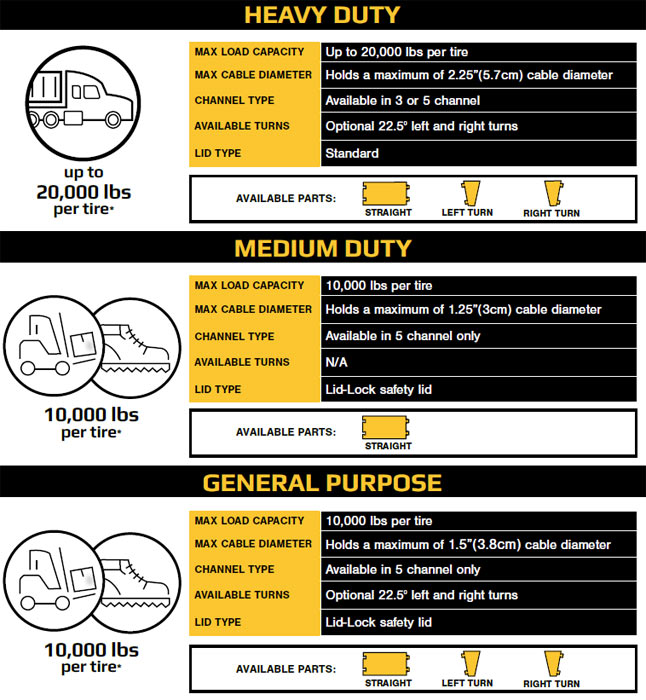

POWERHOUSE Cable Parts*Load rating based on typical semi-truck tire with a diameter of 40″ and a width of 10.7″. Load capacity will decrease as a tire diameter or width decrease.
