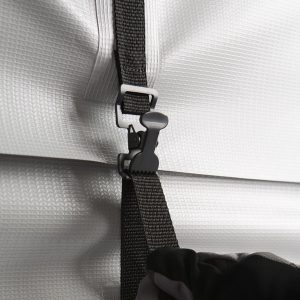

Powerblanket Pipe Heater Wrap buckle
Powerblanket Pipe Heater Wrap Xtreme
Powerblanket Pipe Heater for freeze protection

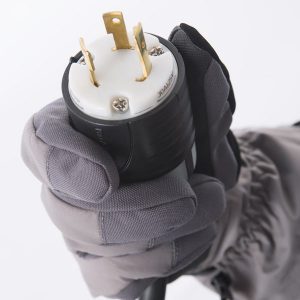

Powerblanket Pipe Heater Wrap 30 amp plug
Powerblanket Pipe Heater Wrap 20 amp plug
Powerblanket Pipe Heater Wrap standard 15 amp plug
Powerblanket Heater Pipe Wrap
Powerblanket Pipe Heater Wrap buckle
Powerblanket Pipe Heater Wrap Xtreme
Powerblanket Pipe Heater for freeze protection
Powerblanket Pipe Heater Wrap 30 amp plug
Powerblanket Pipe Heater Wrap 20 amp plug
Powerblanket Pipe Heater Wrap standard 15 amp plug

Heated Pipe Wraps

PowerBlanket Heated Pipe Wraps provide freeze protection for a wide array of applications. Flow control is critical to any oilfield, mining, or manufacturing operations. Powerblanket’s patented Rapid Ramp Technology features an accelerated initial heat-up time which quickly raises the temperature of fluids or gases to 90°F. Once the blanket achieves 90°F, it reduces power consumption to 550 Watts (4.58 Amps) to maintain the preset 90°F temperature.

Powerblanket pipe heaters allow you to safely control the temperature of expensive chemicals and other fluids. Save time and money by protecting your pipes from freezing without the risk of overheating. Downtime costs due to frozen and broken pipe lines can be substantial. Installing Heated Pipe Wraps on long sections of pipe will maintain flow-ability and maximize production even in harsh winter conditions.

*Please note that pipe heaters are built to order, according to the length, bends, and temperature requirements of your application. Please call us for a price quote or complete the PowerBlanket Custom Questionnaire Form to include the details and specs of your application.



SKU: PB-PH Category:

Description

Heated Pipe Wraps are easy to install, uninstall, and reinstall at only a fraction of the cost of expensive heat trace systems. Heat and insulate pipes, tubing bundles, hoses, and pipelines with Powerblanket’s flexible wrap-around pipe heater wraps to ensure maximum up-time and freeze protection of expensive equipment.

  • Freeze Protection for pipes, valves and cylinders.
  • Heated pipe wraps offer freeze protection in weather down to -40°F/-40°C.
  • Designed to maintain flow and pumpability in pipes.
  • Thaws and protects pipes, hoses, and tubing bundles from freezing.
  • Take equipment offline without fear of frozen pipelines.
  • Used in oilfields, mining & manufacturing operations.
  • ETL certified to UL & CSA safety standards.
  • Adjustable straps for a tight, secure fit.
  • Available in a variety of diameters and lengths.

Literature/Media

Literature

VIDEO
Massman Construction





Industries

Powerblanket Industries

Click on an Industry name to see more info…

Dairy and Agriculture
Industrial Services
Oil Services

Custom Solutions

Powerblanket Custom Heating Solutions

Powerblanket provides custom heating solutions and maximum freeze protection to -40°F for a wide variety of applications. Heating, insulating, thawing, and protecting fluids from harsh outdoor environments is our specialty. Custom heating solutions are available in just about any size or diameter to fit most custom applications across multiple industries. Let our Engineers customize the perfect heating solution for you!



View Powerblanket Custom Heating Solutions Brochure



Custom Temperature Control from Powerblanket on Vimeo.

Ready to Ship – Show Now for one of our pre-built Powerblanket heating products to meet your temperature control needs.



Built to Order – If your application requires slight changes to an existing Powerblanket product such as a longer power cord or a change in dimensions, we can build it for you.



Full Custom Order – Click here and complete our Powerblanket Custom Questionnaire form. If your application and equipment are unique, let a qualified Powerblanket Engineer design a fully customized temperature control system for you.
Powerblanket Custom Heating Solutions

FAQs

-60°F Gray Alloy Vinyl (Extreme Product) -20°F Black D-15 Vinyl (Standard Product)

Ready To Ship models come standard at 120VAC, but we offer 208, 240 & 480VAC custom solutions.  Anything we make below 120VAC or over 240VAC, along with anything built to run over 24Amps, will be non-ETL.

This could cause overheating.  NEVER add extra insulation to any of our heating products.  It will void any warranty and MAY BE HAZARDOUS.

All Powerblanket® products are shipped FOB Salt Lake City, UT, 84119.

Thermal Load is the amount of energy required to keep a space or object at a desired temperature.  When the environment is cooler than the desired temperature of the space or object, the thermal load is a heating load and is the amount of energy required to be added to the space or object in order to achieve the desired temperature.  All things being equal, the heating load will increase when the ambient air temperature decreases, or when the wind speed increases, or if the space or object is placed in contact with a large thermal mass, like a cold concrete floor.

Rapid Ramp (RR) Drum/Bucket is 100°F (± 10°F) / 38°C (±5°C)
PRO Drum/Bucket is 145°F (± 5°F) / 63°C (±3°C)
Foam Box Heaters 110°F (±10°F) / 43°C (±5°C)
Tote Heaters 145°F (± 5°F) / 63°C (±3°C)
DEF Tote Heaters 70°F (± 10°F) / 21°C (±5°C)
Gas Cylinder Heaters (propane) 90°F (± 10°F) / 32°C (±5°C)
Multi-Duty (concrete curing) from approximately 100°F to as high as 150°F
Extra Hot (ground thawing) 150°F (± 10°F) / 65°C (±3°C)

A few things may cause this: ambient temperature, wind speeds, product location, and possible additional variables.

Yes. The recommended product line for this is our Ground Thawing blankets

Not typically, it depends on depth of concrete or asphalt but this not an advised solution.

Our two best sellers are the BH55-PRO which heats/protects a 55-gallon drum and the TH275 which heats/protects a 275 gallon IBC tote.

Powerblanket products use a patented heat spreading technology that has revolutionized effective heat spreading.  Powerblanket uses this technology exclusively in all of its products.  Powerblanket products are electrically powered and heated through internal preset thermostats inside the insulated blankets.

View Powerblankets Core Heating Technology

No, it will damage the heating components.

Yes, a significant part of our business is designing blankets for custom applications.

Please complete our Powerblanket Custom Questionnaire Form to request a custom product..

Overlapping the heating element of a Powerblanket product could cause it to overheat.  If you don’t have an even thermal load will cause overheating.

All Powerblanket® heated solutions are certified by ETL to UL & CSA safety standards except for our DC, Powerblanket 400 & Heat warmer products.
