Ultra-Soft Diamond Plate Mat

From $63.65

To create UltraSoft Diamond-Plate Spongecote® mat by Wearwell® we took our best selling mat, Diamond-Plate SpongeCote®, and gave it a double-thick, Nitricell® sponge base. Just think of UltraSoft Diamond-Plate as Diamond-Plate SpongeCote® on steroids. It provides unparalleled comfort plus a high-tech look, and great abrasion and chemical resistance. UltraSoft can even be customized in virtually any width or dimension to fit the most unique work area. This is why Ultra-Soft Diamond-Plate is the new anti-fatigue mat of choice for those who want to double their comfort.

New Value Added Product! UltraSoft Diamond Plate w/ WOW! Finish is the first TRUE SOLUTION to the industry wide hazard of shifting and sliding mats. Gone are the days of mats sliding around your facility. Same great product, just better!

View Price Chart
View Color Options

Order Custom Sizes


Wearwell Logo

Ultra-Soft Diamond Plate SpongeCote® proves the old adage that two is better than one. The “Nitrile enhanced” Nitricell® sponge is twice as thick but still absorbs repeated compression and bounces back to its original form better than any PVC sponge alternative. That means longer life and greater productivity improvement for hard working industrial athletes. Ultra-Soft Diamond Plate Mat is the ONLY fully customizable Diamond-Plate matting product available.

  • “Best” sponge base
  • Tough abrasion and chemical resistant PVC surface
  • Diamond-Plate pattern for improved traction
  • Machine cut and beveled edges prevent tripping
  • The ONLY fully customizable Diamond-Plate matting product available
  • Overall thickness 15/16” (24 mm)
  • Custom sizes available up to 75′ in length
  • 4 color options to choose from



Additional information

Weight N/A

2 x 3, 3 x 5, 2 x 75 Roll, 3 x 75 Roll, 4 x 75 Roll, 5 x 75 Roll, 6 x 75 Roll


Black, Gray, Black-Yellow, Chevron


Standard Sizes
2′ x 3′ $63.65 $77.85 $69.50 $82.75
3′ x 5′ $159.05 $194.45 $173.60 $206.85
2′ x 75′ $1,487.50 $1,740.00 $1,621.85 $1,931.85
3′ x 75′ $2,124.40 $2,484.10 $2,316.75 $2,759.15
4′ x 75′ $2,831.70 $3,312.75 $3,088.65 $3,678.75
Non-Stock Sizes
*5′ x 75′ $4,976.55 NA $5,368.25 NA
*6′ x 75′ $5,533.75 NA $5,968.25 NA
*Square edges, custom widths, and unique configurations are available. Please call for pricing. 5′ and 6′ widths are seamed. Non-stock sizes are not returnable. Stock rolls ship freight. Shipping will not be calculated on orders exceeding 150 lbs. Please proceed to process your order and we will contact you with the freight cost.
*Custom Sizes (may take 3-5 business days)
2′ widths $11.85/sq. ft. $13.80/sq. ft. $12.90/sq. ft. $15.35/sq. ft.
3′ and 4′ widths $11.25/sq. ft. $13.15/sq. ft. $12.35/sq. ft. $14.65/sq. ft.
*5′ widths $14.80/sq. ft. NA $15.95/sq. ft. NA
*6′ widths $14.25/sq. ft. NA $15.35/sq. ft. NA
*Custom sizes are available in 2′, 3′ and 4′ widths up to 75′ in length. 5′ and 6′ custom widths are seamed and available up to 75′ in length (black and black/yellow colors only). Custom sizes are not returnable. Please contact us to order a custom size UltraSoft Diamond Plate mat or use our Custom Quote Form.


  • Black


  • Gray


  • Yellow


  • Chevron




Product Specs

Uses: All dry work areas
Compound: 5/32″ Vinyl Koroseal surface
3/4″ double thick Nitricell® sponge base
Compression: .50 in @ 35 psi per ASTM D575
Coefficient of Friction: .68 Dry per ASTM F1677
Tabor Abrasion: 1% lost @ 1,000 cycles per Fed Std. 193
Flammability: “A” Rating per MVSS 302

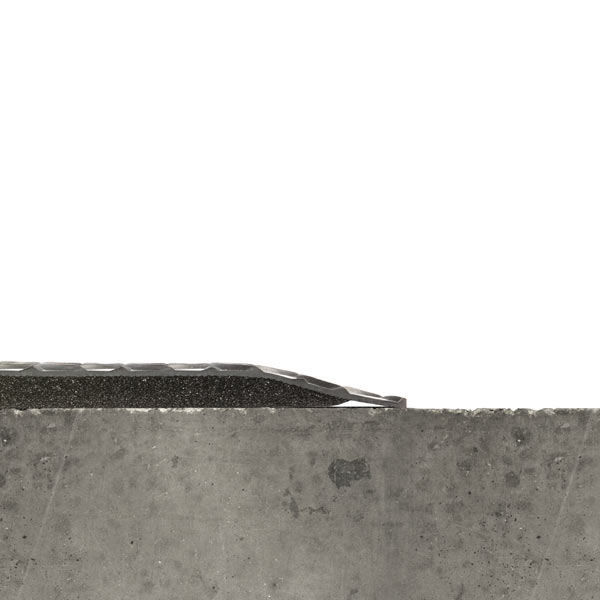

Edges: Safety beveled
Thickness: 15/16″
Colors: Black (BK), Gray (GY), Black/Yellow (BYL), Black/Chevron (CHV)
Warranty: 3 year, conditional

Material Safety Data Sheet

Info on Special Sizes

All Diamond-Plate mats can be Customized!

In fact, we frequently make Diamond-Plate SpongeCote, UltraSoft Diamond-Plate and now, Diamond-Plate with GritWorks, in custom lengths, widths and unique configurations. If you have a “U” or “L” shaped work area we can make a mat to fit it. If your space requires a circular, oval or triangle mat, simply give us a template. And if you have cut-outs in odd places, we can accommodate that too. Basically the sky is the limit when it comes to customizing Diamond-Plate mats.

Some mats may require two or more sections depending on size, weight and shipping requirements. Square edges are also available. Please call 1-866-411-6287 for pricing.



Diamond Plate Matting -What the Pro’s Demand!
