Corrugated Switchboard MattingCorrugated Switchboard Non-Conductive Matting
Corrugated Switchboard Mating #702
Corrugated Switchboard Matting
Corrugated Switchboard Non-Conductive Matting

Corrugated Switchboard Matting

From $63.50

Corrugated Switchboard matting offers peace of mind when working with high voltage equipment! It protects workers from harmful or deadly electrical shock with its ability to insulate against extremely high voltage. Corrugated Switchboard matting conforms to ANSI/ASTM D-178-01. Our NEW 3/8″ thickness meets Type II, Class 3 requirements and ¼” thickness meets Type II, Class 2 specs.

View Price Chart



Clear
Order Custom Sizes

Description

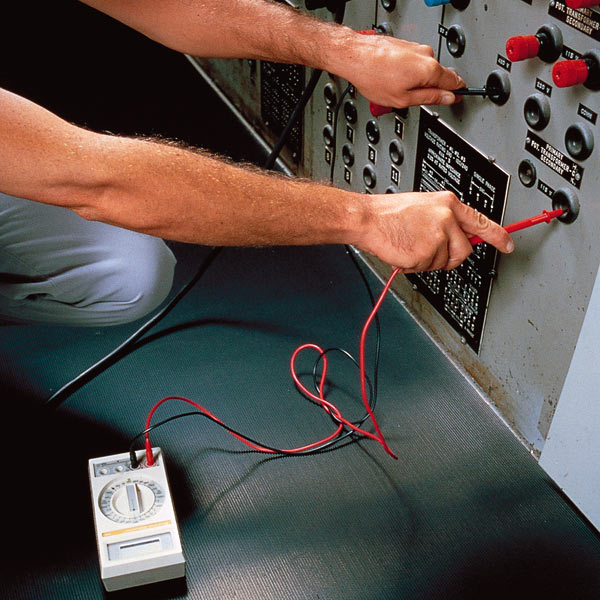

Corrugated Switchboard Matting has a singular purpose: to prevent life-threatening electrical shock disasters in high-voltage environments. Often referred to as Insulative or Non-Conductive matting, Switchboard insulates the standing worker from high voltage shock that can lead to serious bodily harm, even death. Corrugated Switchboard Matting is an essential safety product in a wide range of industries such as mining, munitions, utilities, heavy industry or anywhere else the danger of lethal shock resides.

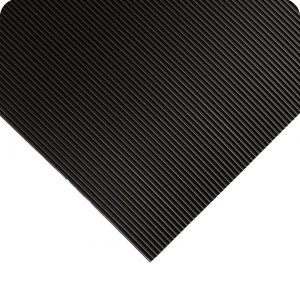

  • Features a tough corrugated surface for extra traction.
  • Available in 1/4” and 3/8″
  • 1/4” thickness conforms to ANSI/ASTM D178-01, Type II, Class 2
  • 3/8” thickness conforms to ANSI/ASTM D178-01, Type II, Class 3
  • Dielectric Strength of 1/4″ thickness: 17,000 volts
  • Dielectric Strength of 3/8″ thickness: 26,000 volts
  • Custom sizes available in lengths up to 75′.

Additional information

WeightN/A
Size

2 x 5, 2 x 10, 2 x 15, 2 x 20, 3 x 5, 3 x 10, 3 x 15, 3 x 20, 4 x 5, 4 x 10, 4 x 15, 4 x 20, 2 x 75 x 1/4" roll, 3 x 75 x 1/4" roll, 3 x 75 x 1/4" roll Yellow Border, 4 x 75 x 1/4" roll, 3 x 75 x 3/8" roll

Border

Black, Yellow

Pricing

Stock Roll SizesPriceCustom Size Prices
2′ x 75′ x 1/4″$818.10$6.35 / sq. ft. (2′ W)
3′ x 75′ x 1/4″$1,066.75$5.50 / sq. ft. (3′ W)
3′ x 75′ x 1/4″ Yellow Border$1,066.75$5.50 / sq. ft. (3′ W)
4′ x 75′ x 1/4″$2,009.50$7.80 / sq. ft. (4′ W)
3′ x 75′ x 3/8″$2,257.20NA
Popular Custom Sizes (1/4″ thick)
2′ x 5′$63.50
2′ x 10′$127.00
2′ x 15′$190.50
2′ x 20′$254.00
3′ x 5′$82.50
3′ x 10′$165.00
3′ x 15′$247.50
3′ x 20′$330.00
4′ x 5′$156.00
4′ x 10′$312.00
4′ x 15′$468.00
4′ x 20′$624.00
Stock rolls ship freight. Shipping will not be calculated on orders over 150 lbs. Please proceed to process your order and we will contact you with the freight cost.
Custom sizes are available in 2′, 3′ and 4′ widths up to 75′ in length. Custom sizes are not returnable. Please call to order a custom size Diamond-Plate Switchboard mat or use our Custom Quote Form.

Specs

Product Specs

Uses: Around electronic and high-voltage apparatus
Compound: PVC
Coefficient of Friction: .91 Dry per ASTM F1677
Tabor Abrasion: 1% lost @ 1,000 cycles per Fed Std. 193 Modified
Flammability: “A” Rating per MVSS 302
Warranty: 1 year, conditional
Color: Black or Black with Yellow Safety Border on 3′ x 75′ x 1/4″ roll only.



U.S. Dept. of Labor, Mine Safety and Health Administration
No. 701 & 702 pass Title 30, Code of Regulations 18.65 Flammability Rating for products taken into mines. MSHA Approved.
