Diamond Plate Military Switchboard #712

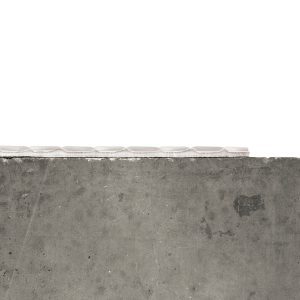

Diamond Plate Military Switchboard Profile
Diamond Plate Military Switchboard #712
Diamond Plate Military Switchboard Profile

Diamond Plate Military Switchboard Matting

$2,237.90

Diamond-Plate Military Switchboard Matting is non-conductive and meets the strict military standard 15562-F Amend. 3, Type III. Perfect for use around high voltage apparatus and in heavily trafficked areas, the diamond-plate pattern offers additional traction and abrasion resistance. Often referred to as Insulative or Non-Conductive matting, Switchboard insulates the standing worker from high voltage shock that can lead to serious bodily harm, even death.

View Price Chart

Order Custom Sizes
SKU: 712 Categories: ,

Description

Wearwell Logo

Diamond Plate Military Switchboard matting is an essential safety product in a wide range of industries such as mining, munitions, military, utilities, heavy industry…anywhere the danger of lethal shock resides. Diamond Plate surface offers additional traction and abrasion resistance. Meets Mil Spec 15562-G Amend. 3, Type III

  • Non-conductive; protects personnel from shock in high voltage areas.
  • Meets Mil Spec 15562-G Amend. 3, Type III
  • Dielectric Strength: 30,000 volts
  • Overall thickness 3/16” (5 mm)
  • Custom sizes available in 3′ widths up to 75′ in length.

Additional information

Weight 270 lbs

Pricing

Stock Size Price
3′ x 75′ $2,237.90
Stock rolls ship freight. Shipping will not be calculated on orders over 150 lbs. Please proceed to process your order and we will contact you with the freight cost.
Custom Sizes $11.50 / sq. ft.
Custom sizes are available in 3′ widths up to 75′ in length. Custom sizes are not returnable. Please click above to order a custom size Diamond Plate Military Switchboard mat.

Specs

Product Specs

Uses: Around electronic and high-voltage apparatus
Compound: Vinyl
Dielectric Strength: 30,000 volts
Recommended Usage: Up to 7,500 volts
Mil. Spec.: MIL-DTL-15562-F Amend. 3, Type III
Coefficient of Friction: .68 Dry per ASTM F1677
Tabor Abrasion: <4 % lost @ 1,000 cycles per Fed Std. 193 Modified
Flammability: Passes Fed. Std. 501, Method 6411
Thickness: 3/16″
Warranty: 1 year, conditional
Color: Gray
