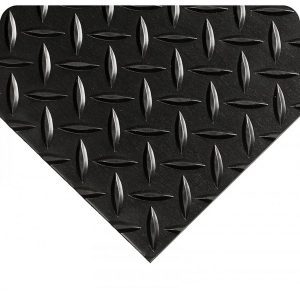

Diamond Plate Switchboard Matting #701
Diamond Plate Switchboard Matting Profile
Diamond Plate Switchboard Matting #701
Diamond Plate Switchboard Matting Profile

Diamond Plate Switchboard Matting

From $988.70

Diamond-Plate Switchboard matting is the newest version of high-performance non-conductive matting. Designed to protect personnel in areas with dangerous high-voltage equipment, it can insulate against as much as 30,000 volts of electricity. Its unique diamond-embossed surface is easily cleaned and will not collect contaminants. Diamond-Plate Switchboard matting conforms to ANSI/ASTM D-178-01 Type 2, Class II.

View Price Chart

Order Custom Sizes
SKU: 701 Categories: , ,

Description

Wearwell Logo

Diamond Plate Switchboard Matting is designed to protect personnel in areas with dangerous high-voltage equipment. It can insulate against as much as 30,000 volts of electricity.

  • Conforms to ANSI/ASTM D-178-01 Type II, Class 2.
  • Dielectric Strength: 30,000 volts
  • Recommended Max Usage per ASTM D178-01: up to 17,000 volts
  • Overall thickness 1/4”
  • Custom sizes available up to 75′ in length.

U.S. Dept. of Labor, Mine Safety and Health Administration
No. 701 & 702 pass Title 30, Code of Regulations 18.65 Flammability Rating for products taken into mines. MSHA Approved.

Additional information

Weight N/A
Size

2' x 75' roll, 3' x 75' Black roll, 3' x 75' Black/Yellow roll, 4' x 75' roll

Pricing

Stock Roll Sizes Price Custom Size Prices
2′ x 75′ x 1/4″ $1,011.00 $7.80 / sq. ft. (2′ W)
3′ x 75′ x 1/4″ (Black) $988.70 $6.10 / sq. ft. (3′ W)
3′ x 75′ x 1/4″ (Black/Yellow) $2,217.60 $7.80 / sq. ft. (3′ W)
4′ x 75′ x 1/4″ $1,986.75 $7.96 / sq. ft. (4′ W)
Stock rolls ship freight. Shipping will not be calculated on orders over 150 lbs. Please proceed to process your order and we will contact you with the freight cost.
Custom sizes are available in 2′, 3′ and 4′ widths up to 75′ in length. Custom sizes are not returnable. Please call to order a custom size Diamond-Plate Switchboard mat or use our Custom Quote Form.

Specs

Product Specs

Uses: Around electronic and high-voltage apparatus
Compound: Vinyl
Dielectric Strength: 30,000 volts
Recommended Usage: Up to 17,000 volts per ASTM D-178-01
Coefficient of Friction: .91 Dry per ASTM F1677
Tabor Abrasion: 1% lost @ 1,000 cycles per Fed Std. 193
Flammability: “A” Rating per MVSS 302
Thickness: 1/4″
Warranty: 1 year, conditional
Color: Black

Literature

Documents

Reviews

There are no reviews yet.
