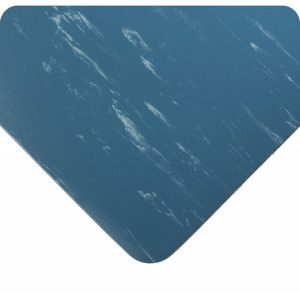

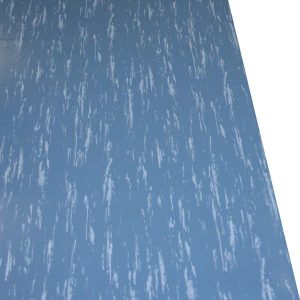

Marbleized Military Switchboard Matting is specifically designed for permanent installation, this non-conductive matting meets Mil. Spec. 15562-G Type I. Specially treated for flooring applications, the smooth, marbleized material can be installed with any vinyl-compatible mastic adhesive. With a dielectric strength of 30,000 volts, the recommended usage is up to 7,500 volts. The smooth vinyl surface is easy to clean and offers exceptional ozone and oil resistance.
Marbleized Military Switchboard Matting has a singular purpose: to prevent life-threatening electrical shock disasters in high-voltage environments. Often referred to as Insulative or Non-Conductive matting, Marbleized Military Swichboard has a singular purpose: to prevent life-threatening electrical shock disasters in high-voltage environments. Switchboard insulates the standing worker from high voltage shock that can lead to serious bodily harm, even death. What makes this particular mat unique is that it is designed for permanent flooring installation using any vinyl-mastic adhesive [professional floor installer is recommended]. When installing Marbleized Military Switchboard Matting several widths of matting side-by-side, it is important to seal the seams to ensure the mat’s reliability or consistent insulative properties. This can be accomplished by bonding the mats together with our welding thread and is available in colors that match the marbleized rolls. For best results, use professional floor installers. They have experience and machinery designed to bond this material.
Marbleized Military Switchboard matting is an essential safety product in a wide range of industries such as mining, munitions, military, utilities, heavy industry…anywhere the danger of lethal shock resides. Smooth surface is easy to clean and has exceptional ozone and oil resistance. For installations that require seaming, we offer compatible welding thread.

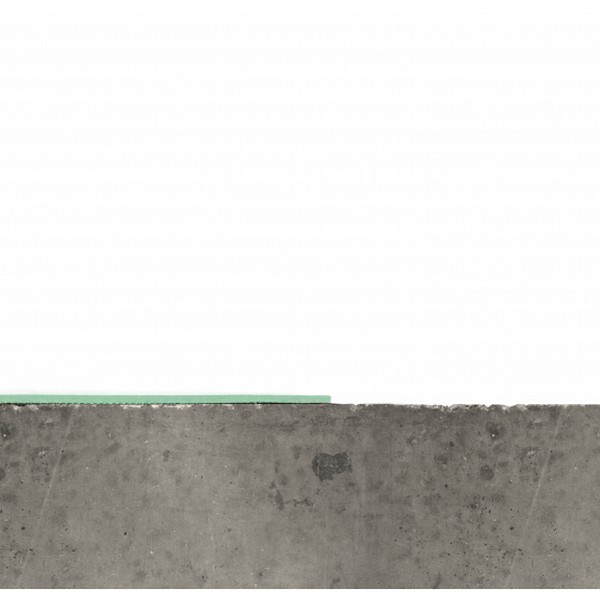

Designed for permanent installation using any vinyl-compatible mastic adhesive
Meets Mil Spec 15562-G Amend. 3, Type I
Dielectric Strength: 30,000 volts
Overall thickness 1/8” (3 mm)
Custom sizes available by quote only.
Additional information
Weight
N/A
Product
3' x 75', 1/8" x 50' Thread Roll, 1/8" x 150' Thread Roll, 1/8" x 300' Thread Roll
Colors
Blue, Green
Pricing
Stock Size
Price
3′ x 75′
$2,727.20
1/8″ x 50′ Thread
$140.20
1/8″ x 150′ Thread
$379.00
1/8″ x 300′ Thread
$691.40
Stock rolls ship freight. Shipping will not be calculated on orders over 150 lbs. Please proceed to process your order and we will contact you with the freight cost.
Custom Sizes
3′ wide to 75′ long
Quoted
1/8″ Thread up to 300′ long. Call to Order!
Quoted
Custom sizes are available by quote only for this product. Custom sizes are not returnable.
Corrugated Switchboard matting offers peace of mind when working with high voltage equipment! It protects workers from harmful or deadly electrical shock with its ability to insulate against extremely high voltage. Corrugated Switchboard matting conforms to ANSI/ASTM D-178-01. Our NEW 3/8″ thickness meets Type II, Class 3 requirements and ¼” thickness meets Type II, Class 2 specs.
Diamond-Plate Military Switchboard Matting is non-conductive and meets the strict military standard 15562-F Amend. 3, Type III. Perfect for use around high voltage apparatus and in heavily trafficked areas, the diamond-plate pattern offers additional traction and abrasion resistance. Often referred to as Insulative or Non-Conductive matting, Switchboard insulates the standing worker from high voltage shock that can lead to serious bodily harm, even death.
Diamond-Plate Switchboard matting is the newest version of high-performance non-conductive matting. Designed to protect personnel in areas with dangerous high-voltage equipment, it can insulate against as much as 30,000 volts of electricity. Its unique diamond-embossed surface is easily cleaned and will not collect contaminants. Diamond-Plate Switchboard matting conforms to ANSI/ASTM D-178-01 Type 2, Class II.
Double-Duty Switchboard Matting protects workers from harmful, even deadly shock. This unique non-conductive anti-fatigue mat features a premium Nitricell® sponge base, making it first in class for comfort and safety.
Designed to meet strict military standards, Smooth Military SwitchboardMatting is non-conductive matting with a dielectric strength of 30,000 volts. The smooth vinyl surface is easy to clean and offers exceptional ozone and oil resistance. Smooth Military Switchboard Matting meets Mil. Spec 15562-F Amend. 3, Type II.
